Steel Angles

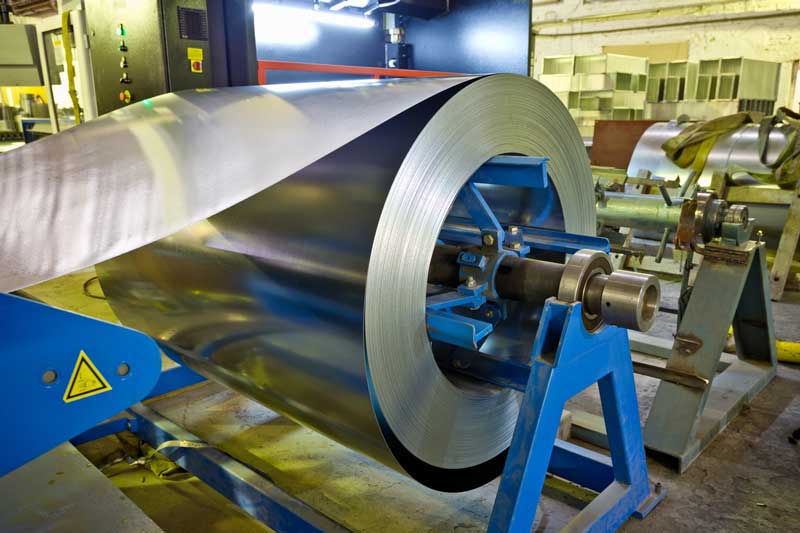

Galvanized Steel Sheet for roll forming

Roll Formed Steel Angles

Steel Angles are one of the most requested roll formed products. Preferred in many industries and angle applications, steel angles maximize the sheer strength of the alloy. Below is a list of steel varieties available to produce Steel Angles, with mass and durability notes included. (Note: Ksi = pound-force per square inch.)

  • Hot Rolled Steel
  • Cold Rolled Steel
  • Structural Grade Steel Steel
  • High Strength Low Alloy Steel
  • Ultra High Strength Steel
  • Stainless Steel
  • Galvanized
  • 30-40 Ksi
  • 30-40 Ksi
  • 40-80 Ksi
  • 40-80 Ksi
  • 90+ Ksi
  • Annealed through Full-Hard
  • All standard coatings available for steel roll formed products

Roller Die is able to keep the price of steel angles low, due to our strategic buying when steel prices are low. We can ensure the lowest available material costs for all steel angle projects. Read about current steel prices in the Raw Materials category of our blog.

Standard Steel Angle Part Dimensions

Steel Angles: Tolerance Capabilities

  • Cross-Sectional Standard Tolerances: +/-.031″
  • Angularity: +/- 1 degree
  • Straightness: Maximum Deviation of .015″/ft
  • Twist: Maximum Deviation of 1/4 degree per ft

Steel Angles: Length Tolerances

  • Lengths up to 36″ : +/-.030″
  • Lengths 36″ to 120″ : +/-.060″
  • Lengths 120″ to 240″ : +/-.125″
  • Lengths greater than 240″ : +/-.250″
    **Note: In some cases, closer tolerances than the standard (listed above) can be achieved, but may require additional tooling.

Additional Capabilities

  • Pre- and Post-Process Hole Piercings
  • Inline Flying Cutoff Providing Parts Cut to Finished Length
  • Stampings
  • Welding
  • Secondary Punching & Forming Operations
  • Assembly
  • Special Packaging
angles

Our Roll Forming Steel Finishing Capabilities

Steel Angles are produced with All Types of Finishes, from Standard Commercial Quality Mill Finish to Bright Annealed and Mirror Finishes. Contact us and we’d be happy to adapt your specific needs.
