Z-Sections

Z-Section Roll Formed Products

Standard Roll Formed Z-Sections

Roller Die + Forming has extensive experience producing roll formed sections. Z-Sections are named for their basic shape and are often used in mounting and to support structural frames. Roller Die’s engineers constantly test the strength of our Z-Sections to ensure optimal results in use. We now have a variety of standard metal roll formed shapes in many sizes to meet your needs.

Innovation doesn’t equal high cost. We thrive on custom roll forming jobs and work as a proactive partner to produce results that are true to your designs and to your budget or experience and expertise which will help your business prosper.

These are our standard shapes and sizes that are ready to use

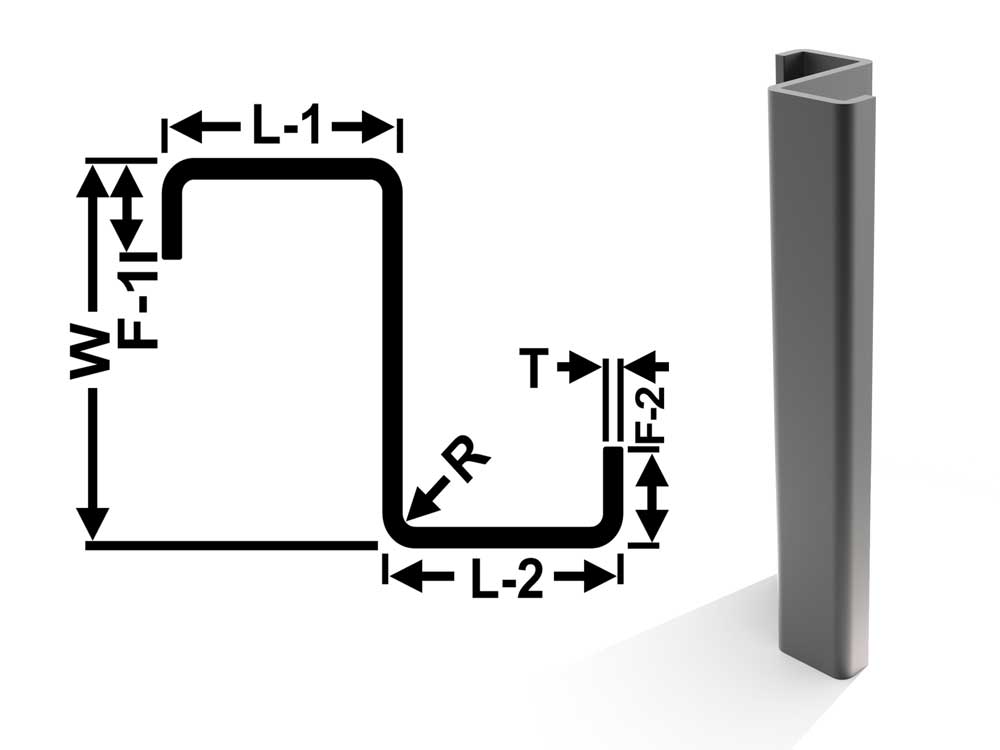

Min Max
W .375" 8"
L-1 .250 3.500
L-2 .250 3.500
F-1 .125 .750
F-2 .125 .750
T .015 .135

Select one or more dimension below to display the list of our standard shapes:

Click on Part Number to Request Quote

Part Number Width Length-1 Length-2 Flange-1 Flange-2 Thickness Radius

Custom Roll Formed Shapes
Custom Roll Formed Parts

Unable to find an exact match in our metal roll forming standard tooling library?

No problem.

With nearly 200 years of cumulative metal roll forming and shop experience, our engineers and in-house tool room can still meet your needs. Fill out our request for quote form to send specifications for your upcoming metal roll forming project and/or upload your CAD designs.

Custom Roll Formed Parts

Roll Forming Materials

Almost any material that can tolerate bending to a desired radius can be roll formed. The more ductile the material is, the better it will roll form. The roll forming process can handle ferrous, nonferrous, hot rolled, cold rolled, polished, plated, or pre-painted metals producing excellent results.
