Roll Formed Steel Channels

When making a roll formed steel channel, Roller Die pairs the known benefits of steel with our unparalleled experience producing roll formed products such as steel channels. Our engineers manage one of the most extensive catalogs of standard channel shapes in the United States. Our engineers and in-house tool room can also create custom shapes and sizes to fit the specific needs of your project. We manufacture many variations of steel channels, often with free tooling from our parts library to keep start-up costs low.

In addition to creating the steel cross-section you need, we provide a variety of in-line processes to further create your steel channel roll formed part. These include pre-punching and pre-notching, cut off dies, stamping, welding, powder coating, and assembly. Our sales and engineering teams will work to help design the exact process to create your part and our quality control team will work to make sure your deliveries are exactly right. Many of our plants boast months at a time with no rejected parts.

Cost Savings Passed To Our Customers

Powder coating is a method used to apply a protective and decorative finish to a material or product. The powder coating process makes use of dry powder and finely ground particles of pigment and resins such as polyester and epoxy. When heated to a higher temperature, the powder will melt and form a smooth bond that is then sprayed onto the surfaces or materials to be coated.

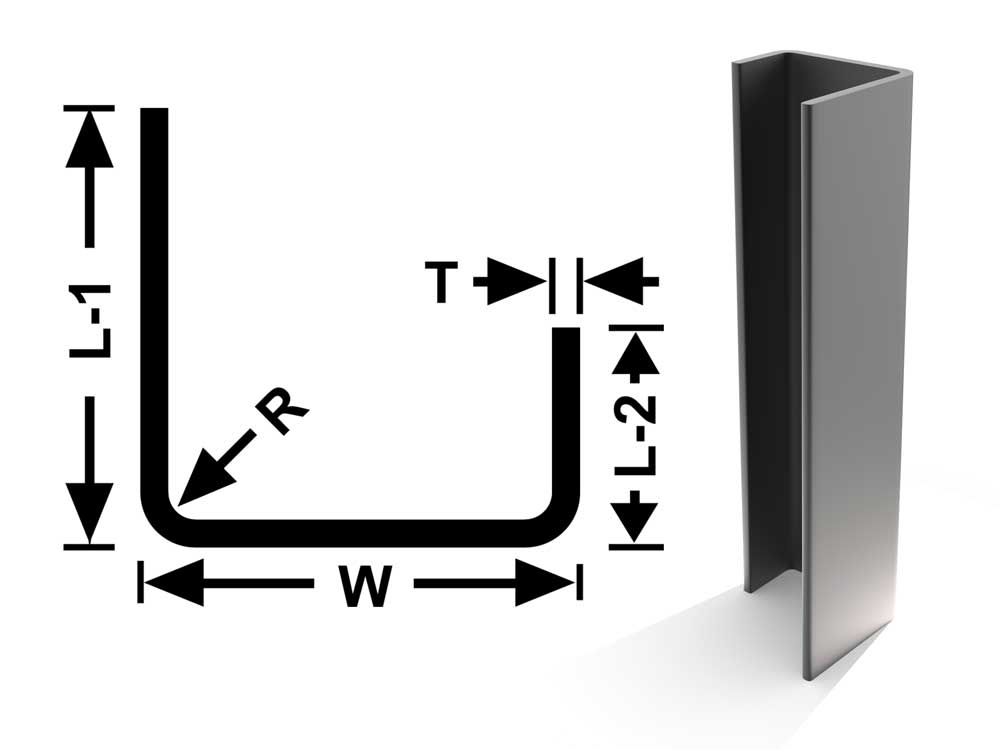

Standard Steel Channels Part Dimensions

Steel Channels: Tolerance Capabilities

  • Cross-Sectional Standard Tolerances: +/-.031″
  • Angularity: +/- 1 degree
  • Straightness: Maximum Deviation of .015″/ft
  • Twist: Maximum Deviation of 1/4 degree per ft

Steel Channels: Length Tolerances

  • Length up to 36″ : +/-.030″
  • Lengths 36″ to 120″ : +/-.060″
  • Length 120″ to 240″ : +/-.125″
  • Lengths greater than 240″ : +/-.250″
    **Note: In some cases, closer tolerances than the standard (listed above) can be achieved, but may require additional tooling.

Additional Capabilities

  • Pre- and Post-Process Hole Piercings
  • Inline Flying Cutoff Providing Parts Cut to Finished Length
  • Stampings
  • Welding
  • Secondary Punching +ACY- Forming Operations
  • Assembly
  • Special Packaging
Roll Forming Custom Parts

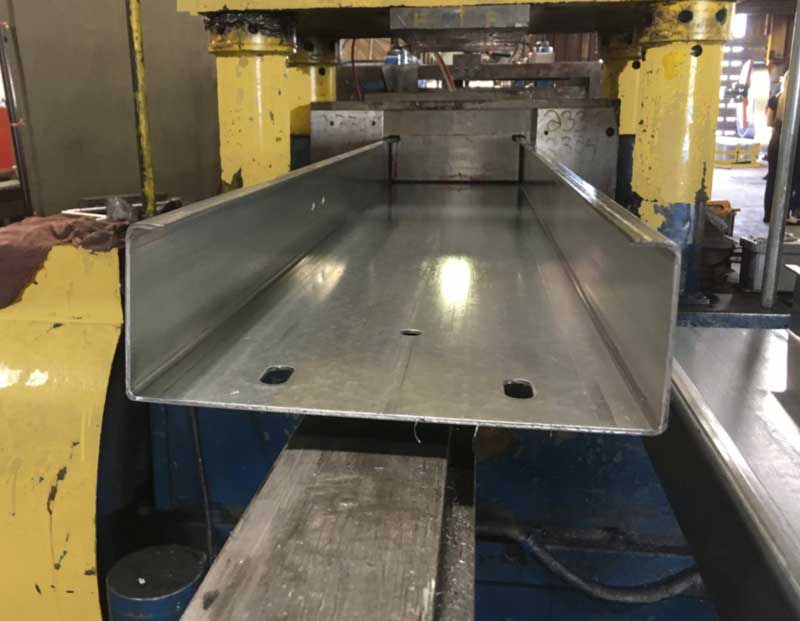

steel channels roll forming
Custom Roll Formed Shapes For Steel Channels
Custom Roll Formed Parts

Unable to find an exact match in our metal roll forming standard tooling library?

No problem.

With nearly 200 years of cumulative metal roll forming and shop experience, our engineers and in-house tool room can still meet your needs. Fill out our request for quote form to send specifications for your upcoming metal roll forming project and/or upload your CAD designs.
