Cee Sections

Cee Section Roll Formed Products

Standard Roll Formed Cee Sections

Roller Die + Forming has extensive skill in producing roll formed Sections. The term “Cee Section” indicates that the opening is on one side of the Section (versus at the top or bottom). Roller Die can provide very close tolerances on Cee Sections, similar to our other shapes, and make them using a wide variety of metals.

Innovation doesn’t equal high cost. We thrive on custom roll forming jobs and work as a proactive partner to produce results that are true to your designs and to your budget or experience and expertise which will help your business prosper.

These are our standard shapes and sizes that are ready to use

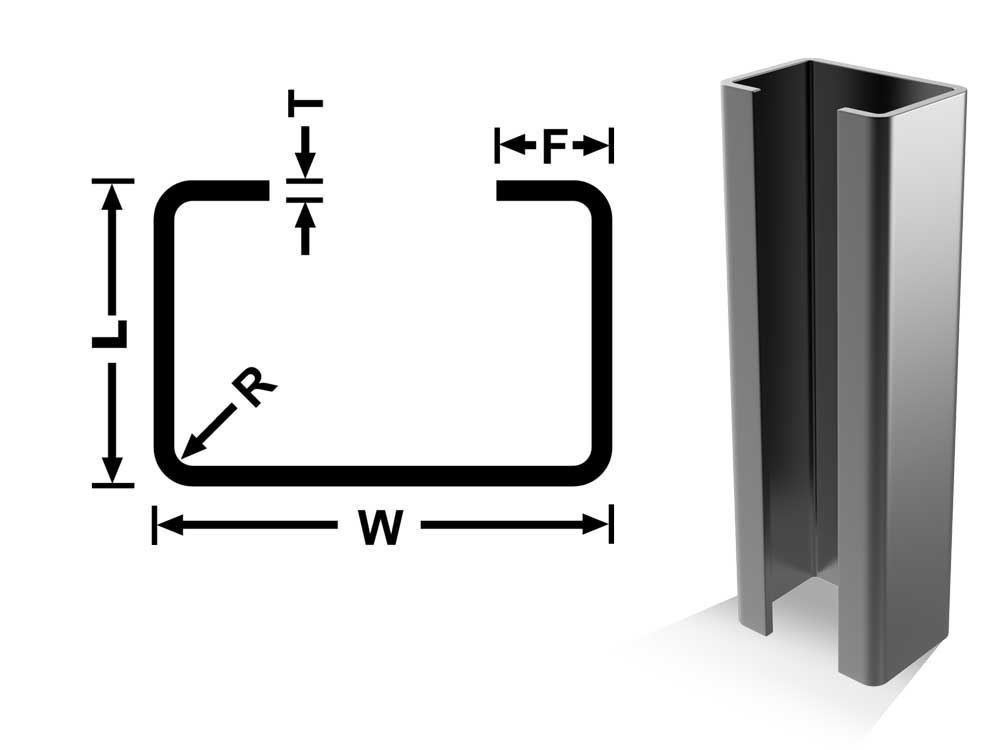

Min Max
W 1/2" 18"
L 1/2" 4"
F 1/4" 1"
T 26ga 3/16ga

Select one or more dimension below to display the list of our standard shapes:

Click on Part Number to Request Quote

Part Number Width Length Flange Thickness Radius

Roll Forming Materials

Almost any material that can tolerate bending to a desired radius can be roll formed. The more ductile the material is, the better it will roll form. The roll forming process can handle ferrous, nonferrous, hot rolled, cold rolled, polished, plated, or pre-painted metals producing excellent results.
