What Is Roll Forming? Easy-to-Understand Basics for Manufacturers

Roll Forming

Roll forming is a unique method used to shape metal into consistent, detailed profiles. This process is crucial in different industries, helping manufacturers produce durable, high-quality parts quickly and efficiently. Roll forming allows for the creation of various shapes, making it a versatile solution for many manufacturing needs.

For manufacturers, understanding roll forming can enhance production processes and reduce costs. The technique involves passing metal through a series of rollers which gradually shape it. This simple yet effective process ensures precision and consistency in every piece produced. Roll forming is particularly valuable for industries that require complex shapes and high-volume production.

By diving into the basics of roll forming, manufacturers can discover new opportunities to improve their operations. This article will cover the essential aspects of roll forming, including the materials used, the advantages for manufacturers, and the future trends in this innovative method. Understanding these fundamentals can lead to better decision-making and more efficient production strategies.

Understanding Roll Forming: A Step-by-Step Process

Roll forming is a straightforward process that turns metal sheets into long, uniform shapes. Hereโ€™s a simple breakdown of the steps involved:

1. Uncoiling the Metal: The process begins with a large coil of metal. This coil is fed into the roll forming machine.

2. Entry Guide: The metal passes through an entry guide to ensure it is properly aligned.

3. Roller Stations: As the metal advances, it goes through multiple roller stations. Each set of rollers shapes the metal a bit more.

4. Cutting: After shaping, the metal is cut to the desired length by a precision cutter.

5. Finished Product: The completed sections are then collected and ready for use or further processing.

Each of these steps ensures that the final product is consistent and precisely formed.

How Does Roll Forming Work?

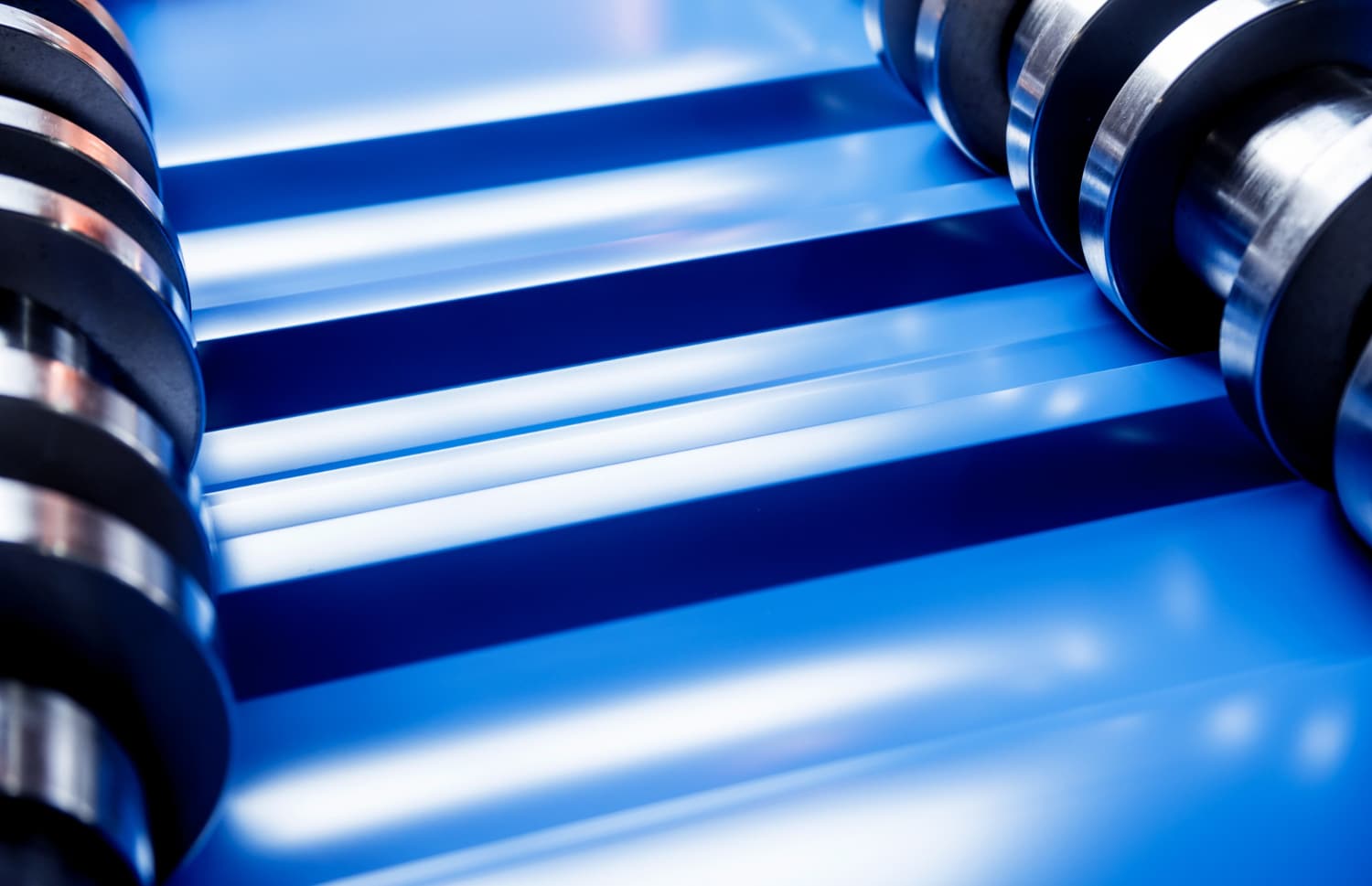

The Importance of Quality in Roll FormingRoll forming is an ongoing process where metal is transformed into specific shapes. The metal strip from the coil goes through a series of rollers. Each roller has a specific role in molding the metal slowly and steadily.

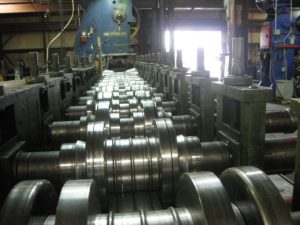

Starting at the first roller station, the metal is slightly bent. As it moves through the line, each successive roller bends the metal a little more. This gradual process allows for precise control over the shape and ensures that the metal doesnโ€™t crack or get damaged.

Finally, after passing through all the rollers, the shaped metal reaches the cutting station, where itโ€™s cut to length. The process is efficient, capable of producing long pieces of metal with consistent shapes and lengths.

Types of Materials Used in Roll Forming

Roll forming works with various types of metals, each chosen for specific properties:

1. Steel: Common due to its strength and durability, suitable for construction and automotive industries.

2. Stainless Steel: Resistant to corrosion, often used in medical equipment and kitchen appliances.

3. Aluminum: Lightweight and resistant to rust, great for aerospace and electronics.

4. Copper: Conducts electricity well, used in electrical components and roofing.

5. Brass: Provides a decorative finish, often found in architectural details.

Each metal has unique characteristics that make it suitable for different applications, allowing roll forming to be used in a wide range of industries.

Key Industries That Benefit from Roll Forming

Several industries rely on roll forming for producing essential parts:

1. Construction: Roll forming is used to create beams, channels, and studs, majorly for building frameworks and support structures.

2. Automotive: The process is vital for making parts like bumpers, door frames, and chassis components, providing precision and strength.

3. Aerospace: Lightweight yet strong parts, like wing supports and fuselage sections, are produced using roll forming.

4. Appliances: Parts for refrigerators, ovens, and washing machines are often roll-formed to meet specific size and shape requirements.

5. Renewable Energy: Solar panel frames and other components are crafted using roll forming for durability and precision.

These industries benefit greatly from roll forming due to its efficiency, precision, and capability to handle high-volume production needs.

Advantages of Roll Forming for Manufacturers

Roll forming offers several key benefits for manufacturers:

1. Efficiency: The continuous nature of roll forming allows for high-volume production, reducing time spent on each piece.

2. Precision: Roll forming produces consistent, high-quality parts with tight tolerances, ensuring every piece is uniform.

3. Material Utilization: Thereโ€™s minimal waste since roll forming cuts the metal precisely to the needed length.

4. Flexibility: The process can handle various metals and complex shapes, making it suitable for diversified product lines.

These advantages make roll forming an ideal choice for manufacturers looking to improve production speed, accuracy, and cost-effectiveness.

Common Applications of Roll Formed Products

Roll formed products are found in many everyday items and industrial components. Here are some examples:

1. Building Components: Roof panels, door frames, window sills, and structural beams are all roll-formed.

2. Automobile Parts: Bumpers, roof rails, and body frame parts rely on roll forming for strength and precision.

3. Electrical Enclosures: Many types of electrical enclosures and panels are roll-formed for durability and exact sizing.

4. Furniture: Metal furniture frames, shelving brackets, and drawer slides are crafted using roll forming.

5. Industrial Equipment: Conveyor systems, machine guards, and storage racks are popular roll-formed products.

These applications show how versatile and widespread roll-formed products are across different industries.

Roll Forming vs. Other Metal Forming Methods

When comparing roll forming to other metal forming methods, several distinctions become evident:

1. Stamping:

– Process: Stamping involves pressing metal into shape using a single, forceful impact.

– Precision: While precise, itโ€™s less suited for long parts.

– Complexity: Better for simple shapes but not as flexible for complex profiles.

2. Press Braking:

– Process: Press braking bends metal sheets using a press brake machine.

– Scalability: More suitable for lower volume production.

– Flexibility: Can create various shapes but is slower for high-volume needs.

3. Extrusion:

– Process: Extrusion pushes or pulls metal through a die to create shapes.

– Material: Often used for aluminum and other softer metals.

– Consistency: Good for uniform cross-sections but less versatile in profile complexity.

By using roll forming, manufacturers can achieve higher volumes, more intricate profiles, and consistent quality, making it a preferred method for many applications. Roller Die can also roll form parts in conjunction with other metal forming processes, giving us many tools to create the exact part our customer needs.

Cost Efficiency and Roll Forming: Breaking Down the Savings

Roll forming is a cost-effective solution for several reasons:

1. Material Savings: The precise cutting and shaping reduce scrap and waste, lowering material costs.

2. Labor Reduction: Automation in roll forming minimizes the need for extensive manual labor, reducing labor costs.

3. Energy Efficiency: The continuous nature of roll forming often requires less energy compared to other methods that need multiple setups or more intensive machinery.

4. Maintenance: The machinery used in roll forming tends to have lower maintenance costs due to its simplicity and durability.

These cost-saving aspects make roll forming a smart choice for manufacturers looking to optimize their budget while maintaining high production standards.

Customization in Roll Forming: Meeting Specific Needs

Roll forming offers significant customization options that allow manufacturers to meet specific needs and requirements. Hereโ€™s how:

1. Profile Shapes: Roll forming can create a variety of shapes, from simple channels and angles to complex profiles with detailed geometries.

2. Lengths and Sizes: Adjusting the process allows the production of different lengths and sizes, tailored to project specifications.

3. Material Thickness: Customization includes altering the thickness of materials processed, accommodating various strength and weight needs.

4. Surface Finishes: Options for surface finishes such as smooth, textured, or coated are available, enhancing product aesthetics and functionality.

This level of customization ensures that the roll-formed products fit perfectly with the intended application, providing flexibility and precision.

The Role of Technology in Modern Roll Forming

Technological advancements play a crucial role in improving the roll forming process. Several innovations have made the process more efficient and precise:

1. Computer-Aided Design (CAD): CAD software helps in designing complex profiles accurately, ensuring that the final product meets exact specifications.

2. Automation: Automated roll forming machines reduce manual intervention, increase production speed, and maintain consistent quality.

3. Real-Time Monitoring: Advanced sensors and monitoring systems track the process in real time, identifying and correcting errors immediately.

4. Flexible Tooling: Modern machines use quick-change tooling systems, allowing for faster transitions between different product runs.

Embracing these technologies helps manufacturers produce high-quality products more efficiently, ultimately boosting productivity and reliability.

Quality Control in Roll Forming Processes

Maintaining high quality is essential in roll forming. Here are the key quality control measures used:

1. Material Inspection: Before processing, materials are checked for defects to ensure they meet specific standards.

2. In-Process Monitoring: Continuous monitoring during roll forming detects any deviations or issues, allowing for immediate corrections.

3. Dimensional Checks: Regular checks of dimensions ensure that each product meets the required tolerances.

4. Surface Finish Inspection: The surface of the final product is inspected for consistency and any imperfections.

These steps ensure that the final products are of high quality and meet strict industry standards, making roll forming a reliable method for manufacturing.

Future Trends in Roll Forming

The future of roll forming looks promising with several emerging trends:

1. Sustainability: Thereโ€™s a growing focus on using eco-friendly materials and processes that reduce waste.

2. Advanced Materials: The development of new alloys and composite materials that offer improved strength and lighter weight.

3. Enhanced Automation: Continued advancements in automation technology to reduce labor costs and improve efficiency.

These trends indicate that roll forming will continue to evolve, becoming even more efficient and adaptable to future manufacturing needs.

Conclusion

Understanding the basics of roll forming and its numerous advantages highlights why itโ€™s a preferred method for many manufacturers. From the ability to customize profiles to the efficiency and precision offered by modern technology, roll forming meets a wide range of industry needs. Quality control ensures the production of high-standard parts, while the cost benefits make it an economical choice.

As technology advances and new materials are introduced, roll forming will remain at the forefront of innovative manufacturing solutions. Keeping an eye on future trends will help manufacturers stay ahead of the curve and maintain a competitive edge.

If youโ€™re ready to explore how custom roll forming can benefit your manufacturing process, connect with Roller Die + Forming. We offer expert guidance and high-quality roll-formed products to meet your specific needs. Contact us today to learn more!
